Custom Slit Wire Cloth

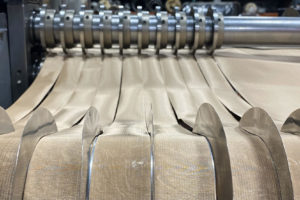

A customer from the plumbing industry approached Custom Filtration Inc. to slit 10,000 linear feet of brass wire cloth. Using a custom built slitter, the mesh which had a wire diameter of .0065″ was slit to the customer specified dimensions. The final brass coils were 200′ in length and 2.9″ wide. We were able to maintain tightest tolerances of ±.010″ throughout the entire silting process.
After checking and recording the brass wire cloth’s slit width, we delivered the completed cloth to the client’s Philadelphia, PA location.
For more information about this slitting project, please see the details below. To learn about our other services, please contact Custom Filtration Inc.
Slit Wire Cloth Specifications
- Product Description
This Brass Wire Cloth is used for a water application.
- Capabilities Applied/Processes
Slit using custom built slitter
- Slit to specified dimensions
- Overall Part Dimensions
Material:
60 x 50 Mesh
.0065″ Wire DiameterFinished Coil Dimensions
Length: 200′
Width: 2.900″
- Tightest Tolerances
±.010″
- Material Used
Brass
- Industry for Use
Plumbing
- Volume
10,000 linear feet
- Delivery Location
Philadelphia PA
- In Process Inspection preformed
Check and record slit width
- Standards Met
Customer supplied specifications
- Product Name
Slitting of Brass Wire Cloth
